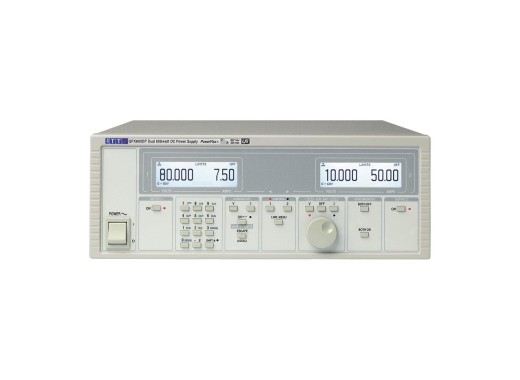

Aim-TTi QPX600DP power supply
Details
The QPX600DP is an 80V 50A dual-output lab power supply that uses PowerFlex+ technology to provide a higher range of current at lower voltages, within its 1200W power range. This technology also has a balanced multi-phase converter to minimise ripple and improve dynamic performance.
Due to each output having its own LCD display the QPX600DP can be operated as two separate power supplies. The two outputs can be connected in parallel or in series, and with PowerFlex+ regulation, it is possible to simulate a higher-voltage or higher-current single-output power supply.
It is suited for both bench and rack mounting, including folding legs to angle the front panel upward. It also features analog controls for voltage and current, both front and back connection sockets and a dot-matrix monochrome backlit LCD display.
Model overview
| Model | Aim-TTi QPX750SP | Aim-TTi QPX1200S | Aim-TTi QPX600DP |
|---|---|---|---|
| Total power | 750 W | 1200 W | 1200 W |
| Output channels | 1 | 1 | 2 |
| Voltage range | 0 - 80 V | 0 - 60 V | 0 - 80 V (per channel) |
| Interfaces | Analog, USB, LAN/LXI, GPIB (optional) | Analog | Analog, USB, LAN/LXI, GPIB (optional) |
| Price |
Specifications
| Output switch | ON and OFF or BOTH ON and BOTH OFF |
| Current range | 0 - 50 A (per channel) |
| Resolution | 1 mV / 10 mA |
| Ripple | <3 mV |
| Protection | OVP, OCP, OTP, remote sense mis-wiring protection |
| Display | dot-matrix monochrome LCD |
| Dimensions | 350 x 130 x 413 mm |
| Weight | 9.2 kg |
Accessories
The Aim-TTi QPX600DP comes with the following accessories:- Power cable
Pros and cons
- PowerFlex+ system allows for higher currents at lower voltages
- 2 independent channels
- No digital interfaces
Downloads
| Aim-TTi QPX series datasheet |  (2.32 MB) | Download |
| QPX600D+DP Instruction Manual EN | (969.52 KB) | Download |
