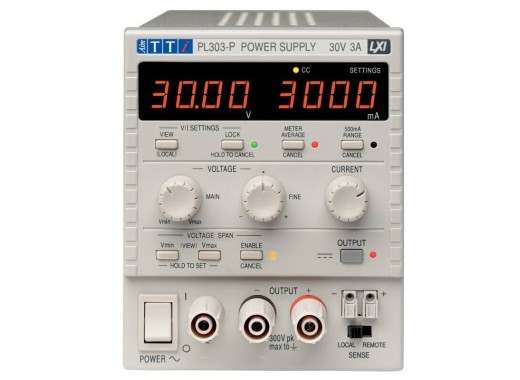

Aim-TTi PL303-P power supply
Details
The Aim-TTi PL303-P is a reliable and high-quality power supply that is part of the PL-P series. This power supply is equipped with true analog controls, which allow for precise and effortless adjustments to both current and voltage. Additionally, the PL-P series power supplies feature LAN, USB, and RS-232 connectivity, making it possible to control the power supply remotely. The PL303-P boasts exceptional accuracy for a power supply in its price range, with a minimum current of 0.2mA and an impressive low range of 40μA in the 500mA range. This power supply can operate at 90W, offering a voltage range between 0-30V and a current range between 0-3A. The internal heatsinks are designed to keep fan noise to a minimum whilst removing heat. This product is also compatible with the Aim-TTi RM460 rack mount kit.
Specifications
| Total power | 90 W |
| Outputs | 1 |
| Output switch | Only 1 |
| Voltage range | 0 - 30 V |
| Current range | 0 - 3 A |
| Resolution | 10 mV / 0.1 mA (0.01 mA on 500 mA range) |
| Ripple | 0.4 mV rms / 2 mV p-p 0.2 mA rms / < 40 μA on 500 mA range |
| Protection | OPP, OCP, OVP, OTP |
| Interfaces | analog, RS-232, USB, LAN (LXI) |
| Display | Dual 4-digit meters, 10 mm LED |
| Dimensions | 107 x 131 x 288 mm |
| Weight | 4.9 kg |
Pros and cons
- High accuracy
- Compact
Downloads
| Aim-TTi PL-P series datasheet |  (3.31 MB) | Download |
