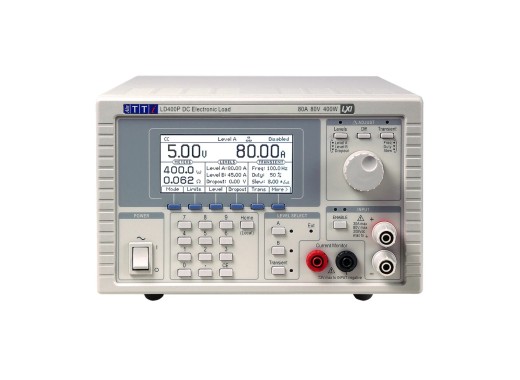

AIM-TTi LD400P electronic load
Details
The AIM-TTi LD400P is a compact electronic load from the LD400 series with a maximum constant power of 400W or 600W for 60 seconds. It has an input voltage range of 0-80V and an input current range of 0-80A. The device features an LCD with a white LED backlight and can be connected through USB, RS-232, GPIB, and LAN with LXI. Additionally, it includes a built-in transient generator with variable slew, a current monitor output for waveform testing, and a variable drop-out voltage for battery testing.
Specifications
| Power | 400 W 600 W for 60 seconds |
| Input voltage range | 0 - 80 V |
| Input current range | 0 - 80 A |
| Resistance | 0.04 - 400 Ω |
| Slew rate | 2.5 A / s - 2500 A / ms |
| Static modes | CC,CP,CR,CG,CV |
| Interfaces | USB, RS-232, GPIB and LAN with LXI |
| Display | 256x112 pixels LCD |
| Dimensions | 130 x 212 x 435 mm |
| Weight | 5.7 kg |
Downloads
| AIM-TTi LD400P datasheet |  (3.14 MB) | Download |
| LD400P user manual | (893.2 KB) | Download |
