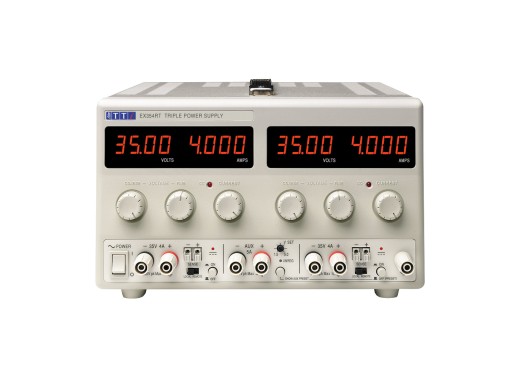

Aim-TTi EX354RT power supply
Details
The Aim-TTi Ex354RT is a very silent lab power supply as it is completely fanless, which makes it very suitable for the quiet workplace. It features all analog controls, a 4 digit display and output sockets that accept 4 mm safety plugs, fork connectors or even bare wires, giving it maximum connection flexibility.
What makes this model unique among the rest of the series is that aside from the first two outputs with a 0-35V and max. 4A output, is that it has a third auxiliary output with a 1.5-5V and 5A output.
By means of 'mixed-mode regulation', the performance of this lab power supply comes close to a fully linear design. All outputs have a 'DC output switch' with which the set current and voltage values can be displayed before the load is connected. It also allow you to switch between local and remote sensing, the latter being essential for maintaining precise regulation at the load and true metering of load voltage.
Model overview
The products in the Aim-TTi EX-R series differ mainly in number of outputs and total power.
| Model | Aim-TTi EX354RD | Aim-TTi EX354RT |
|---|---|---|
| Total power | 280 W | 305 W |
| Outputs | 2 | 3 |
| Price |
Specifications
| Output switch | Only channel 1 & 2 |
| Voltage range | CH1 & CH2: 0 - 35 V CH3: 1.5 - 5.0 V |
| Current range | CH1 & CH2: 0 - 4 A CH3: 5 A |
| Resolution | 10 mV / 1 mA |
| Ripple | <2 mV / 1 mA |
| Display | Dual 4 digits LED |
| Dimensions | 260 x 160 x 320 mm |
| Weight | 4.3 kg |
Accessories
The Aim-TTi EX354RT comes with the following accessories:- Power cable
Pros and cons
- No fan noise
- Third output is fully variable with a higher max. current limit
- Various types of socket connections possible
- Low total power and max. current
- No digital interfaces
Downloads
| Aim-TTi EX-R series manual |  (391.75 KB) | Download |
| Aim-TTi EX-R series datasheet | (1.82 MB) | Download |
