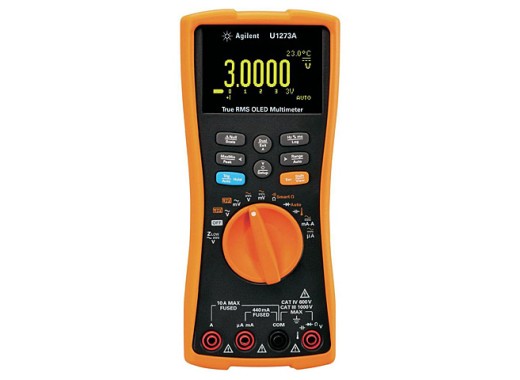

Keysight U1273AX industrial IP54 OLED multimeter
Details
This solid industrial multimeter has a dust and waterproof housing (IP54). The multimeter has very accurate measuring equipment (AC voltage 0.7%) and 30,000 counts. The measurement results are displayed on a very bright and high contrast (2000:1) OLED display with a viewing angle of 160 degrees.
The Keysight U1273AX is equipped with various tools to quickly and correctly measure (LPF, ZLOW, Smart Ohm). In the pass-through mode there is both a beep and a visual warning. By means of the optional Bluetooth or infrared module the data can be logged and/or viewed remotely.
Check the demo video out.
Specifications
Below you will find some specifications, further specifications, such as the accuracy can be found in the data sheet| Measure specifications | |
| DC/AC voltage | 30 mV - 1000 V |
| DC/AC current | 0.3 mA - 10 A |
| Resistance | 30 Ω - 300 MΩ |
| Frequency | 10 Hz - 100 kHz |
| Capacity | 10 nF - 10 mF |
| Temperature | –200°C - 1732°C |
| Continuity | ✔ |
| Diode test | ✔ |
| Display | 4 1/2 digit, 30000 counts |
| Lifespan batteries | 50 uur |
| Safety | CAT III 1000 V / CAT IV 600 |
| IP-rating | IP-54 (Dust and water resistant) |
| Dimensions | 207 x 92 x 59 mm |
| Weight | 500 g |
Accessories
De Keysight U1273AX will be delivered including:- 3 years warranty
- Test leads set
- K-type thermocouple and adaptor
- 4x batteries
- Start guide
- Calibration certificate
Downloads
| Datasheet U1270 |  (4.02 MB) | Download |
