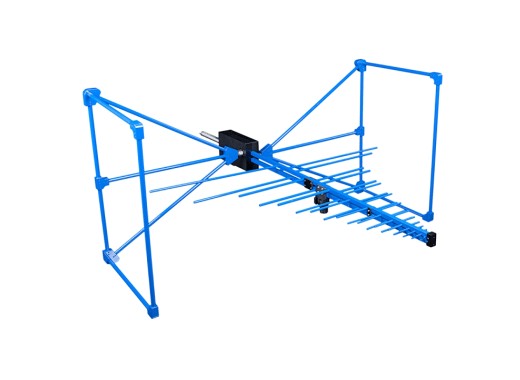

Aaronia HyperLOG 20600 EMI antenna
Details
The Aaronia HyperLOG 20600 EMI is a high-performance broadband antenna suitable for the spectrum from 20MHz to 6GHz. The antenna has been designed with quality in mind and is therefore well-suited for professional EMC/EMI pre-compliance testing. The HyperLOG 20600 EMI can be used to measure Bluetooth, GSM, Wi-Fi, microwave, radio, and TV.. The antenna can also be used for immunity testing and is known for its high accuracy. The 20600 EMI comes with calibration data on a CD with 597 calibration points.
For more information, please consult the datasheet at the bottom of the page.
Model overview
| Model | 20300 | 20600 |
|---|---|---|
| Frequency range | 20 MHz - 3 GHz | 20 MHz - 6 GHz |
Specifications
| Gain (Typ.) | 8 dBi |
| Impedance | 50 Ohm |
| Calibration points | 597 (10 MHz steps) |
| VSWR (Type.) | < 2:1 |
| Accuracy | 0.3 dB |
| Max. input power | 310 W AM |
| RF connection | N Female |
| Design | Biconical and log-periodical |
| Weight | 6.5 kg |
| Dimensions | 1300 x 1170 x 595 mm |
Accessories
The HyperLOG 20600 EMI antenna comes with:
- Calibration certificate
Pros and cons
- High quality
- Wide frequency range
Downloads
| Aaronia HyperLOG 20600 EMI Datasheet |  (674.72 KB) | Download |
