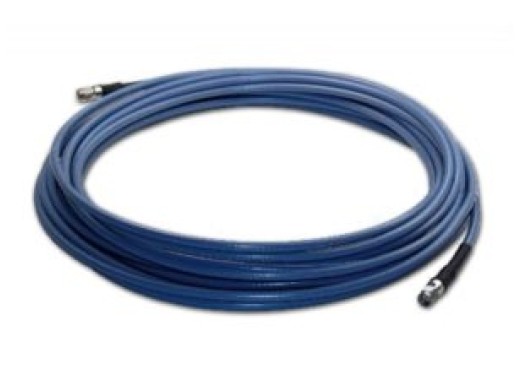

Aaronia coax kabel met 2 x SMA female en montageschroef 5m.

  • Eleshop
  • Aaronia coax kabel met 2 x SMA female en montageschroef 5m.
89.95 €89.95 Excl. VAT
This product is retired
  •
Product number: ELE003114

Be the first to review this product

Lowest price guaranteed

Details

• Length: 5m • Colour: blue • Outer diameter: 5,5mm • Plug: 2 x SMA plug (male) • Nominal impedance: 50 Ohms • Capacity: 82pF/m • VSWR: max. 1:1,3 (6GHz) • Damping 1GHz: 1,2dB (0,240dB/m) • Damping 2GHz: 1,9dB (0,380dB/m) • Damping 3GHz: 2,2dB (0,440dB/m) • Damping 6GHz: 3,5dB (0,700dB/m) • Max. power capacity: 126W CW (900MHz) • Temperature range: -40°C to 85°C
