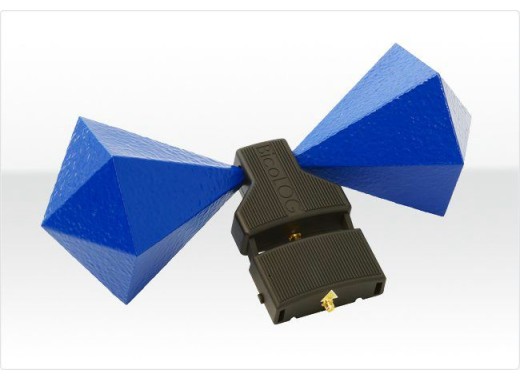

The Aaronia BicoLOG 30100X is a high-performance active broadband antenna suitable for the range of 30 MHz to 1 GHz. This makes the antenna perfect for EMC pre-compliance measurements, but also for signals such as radio and TV. The 30100 comes with calibration data on a CD with 104 calibration points. The 30100X comes with a carrying case and SMA tool. For further information, please refer to the datasheet at the bottom of the page.
Specifications
| Frequency range |
30 MHz - 1 GHz |
| Gain |
1 dBi - 41 dBi |
| Impedance |
50 Ohm |
| Calibration points |
104 (5 MHz and 10 MHz steps) |
| Tripod socket |
1/4" |
| RF connection |
SMA-Female |
| Design |
Active bionical |
| Weight |
500 g |
| Dimensions |
350 x 160 x 140 mm |
