Aaronia BicoLOG 30100 antenna 30MHz - 1GHz
Details
The Aaronia BicoLOG 30100 is a high-performance broadband antenna suitable for the range of 30 MHz to 1 GHz. This makes the antenna perfect for EMC pre-compliance measurements, but also for signals such as radio and TV. The 30100 comes with calibration data on a CD with 104 calibration points. For further information, please refer to the datasheet at the bottom of the page.

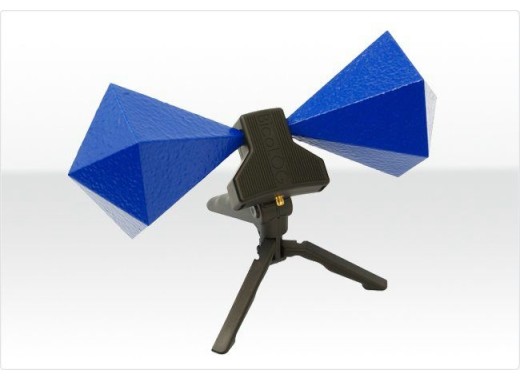

Keep in mind that the base on which the antenna is shown in the images is an option. This will not be bundled.
Specifications
| Frequency range | 30 MHz - 1 GHz |
| Gain | -39 dBi - 1 dBi |
| Antenna factor | 20 - 41 dB/m |
| Max. Transmission power | 5 W AM (100 MHz) |
| Impedance | 50 Ohm |
| Calibration points | 104 (5 MHz and 10 MHz steps) |
| Tripod socket | 1/4" |
| RF connection | SMA-Female |
| Design | Bionical |
| Weight | 350 g |
| Dimensions | 350 x 160 x 140 mm |
Downloads
| Aaronia BicoLOG 30100 datasheet |
 (2.17 MB) |
Download |
