2nd Chance Rohde & Schwarz RTC-BNDL oscilloscope
Details
This is a second chance product. The product packaging has been opened, and the unit has light traces of usage. Therefore, one unit is now available for a reduced price! Also note, the device still has 33 months of warranty left.

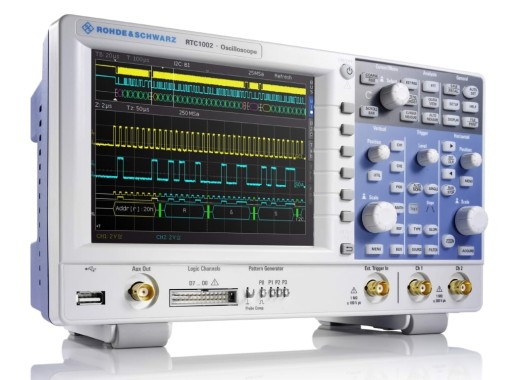

Rohde & Schwarz RTC-BNDL is a premium 2-channel oscilloscope with 300 MHz bandwidth. The scope is equipped with a 6.5" display and has a high sample rate and memory depth. The RTC-BNDL oscilloscope gives you the quality and reliability you are used to from Rohde & Schwarz with state-of-the-art A/D converters and a low noise floor for very accurate measurements.
R&S Full Package RTC
The Rohde & Schwarz RTC-BNDL Promotion gives users more than just an oscilloscope. The Full Package RTC1002 comes with 2x RT-ZP03 probe, RTC-B223 bandwidth upgrade (300 MHz) and RTC-PK1 option bundle.
Specifications
| Channels | 2 |
| Bandwidth | 300MHz |
| Sample rate |
1GSa/s per channel
2GSa/s interleaved |
| Waveform capture rate | 10,000 wfms/s |
| Memory depth | 1MPts per channel
2MPts interleaved |
| Input impedance | 1MΩ |
| Rise time | <1.15ns |
| Vertical scale | 1mV/div - 10V/div |
| Vertical bits | 8 |
| Horizontal scale | 1ns/div - 100s/div |
| Waveform/Pattern generator option | Yes |
| Display | 6.5" VGA 640x480 |
Accessories
The Rohde & Schwarz RTC-BNDL is delivered including
- 2x RT-ZP03 probe
- Power cord
- User Manual
Downloads
| R&S RTC1000 series manual |  (12.44 MB) | Download |
| R&S RTC1000 series datasheet | (1.48 MB) | Download |
| R&S RTC1000 series brochure | (4.31 MB) | Download |
