2nd Chance Owon OWP8100H power supply

Eleshop
Sale
Power Supplies & Loads

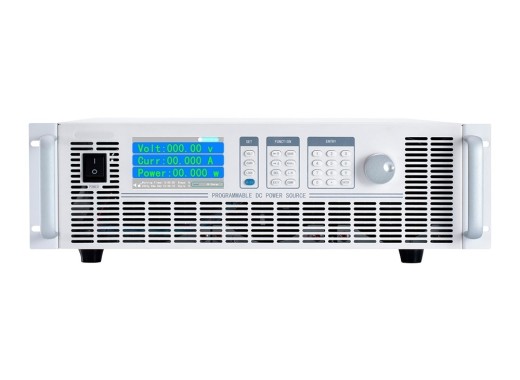

2nd Chance Owon OWP8100H power supply

2290.29

Regular Price: €3,053.72

Now: €2,290.29 Excl. VAT

Loading stock info

Product number: ELE009346

Be the first to review this product

Lowest price guaranteed

Details

Take note: This product has been used and therefore has slight scratches on the metal top and bottom panel. (see picture). Furthermore, this product cannot connect to other OWP devices. It can only function as a stand alone device. But it has the same 2 year warranty as new device.

The Owon OWP8100H power supply has a maximum output of 8000W up to 10A and 1000V. With the 10mV/1mA ouput resolution you get an accurate output. This power supply series supports multiple modes, for example fuction generator or step mode. Being able to put a graph on the display you can get a good overview of the output. These power supplies come with remote voltage compensation which will make sure that the voltage/amperage you set on the power supply is also what will be on the load. With a lot of programmability and the ability to mount it in a rack you get a good price-quality ratio.

The rack-mount ability is 2U/3U and doesn't apply for the 1KW models

Models

The models differ in maximum voltage, current and output power.

Model	OWP1006H	OWP1010H	OWP1020H	OWP1030H
Voltage	60 V	100 V	200 V	300 V
Current	30 A	15 A	8 A	5 A
Output power	1000 W	1000 W	1000 W	1000 W
Price	1070.25 €1,070.25 Excl. VAT	1070.25 €1,070.25 Excl. VAT	1070.25 €1,070.25 Excl. VAT	1070.25 €1,070.25 Excl. VAT

Model	OWP3004H	OWP3006H	OWP3008H	OWP3010H	OWP3020H	OWP3040H	OWP3060H
Voltage	45 V	60 V	80 V	100 V	200 V	400 V	600 V
Current	100 A	80 A	60 A	45 A	23 A	12 A	6 A
Output power	3000 W	3000 W	3000 W	3000 W	3000 W	3000 W	3000 W
Price	1776.86 €1,776.86 Excl. VAT	1776.86 €1,776.86 Excl. VAT	1776.86 €1,776.86 Excl. VAT	1776.86 €1,776.86 Excl. VAT	1776.86 €1,776.86 Excl. VAT	1776.86 €1,776.86 Excl. VAT	1776.86 €1,776.86 Excl. VAT

Model	OWP8010H	OWP8020H	OWP8040H	OWP8060H	OWP8100H	OWP8150H
Voltage	100 V	200 V	400 V	600 V	1000 V	1500 V
Current	100 A	50 A	25 A	17 A	10 A	5 A
Output power	8000 W	8000 W	8000 W	8000 W	8000 W	7500 W
Price	3053.72 €3,053.72 Excl. VAT	3053.72 €3,053.72 Excl. VAT	3053.72 €3,053.72 Excl. VAT	3053.72 €3,053.72 Excl. VAT	3053.72 €3,053.72 Excl. VAT	3301.65 €3,301.65 Excl. VAT

Specifications

Total power	8000 W
Mode	CC, CV, CP
Outputs	1
Output switch	Yes
Voltage range	0 - 1000 V
Current range	0 - 10 A
Resolution	10mV/1mA
Protection	OLP, OCP, OVP, OTP
Interfaces	RS485
Display	4.3" TFT
Dimensions	425 x 132 x 551mm
Weight	25 kg
