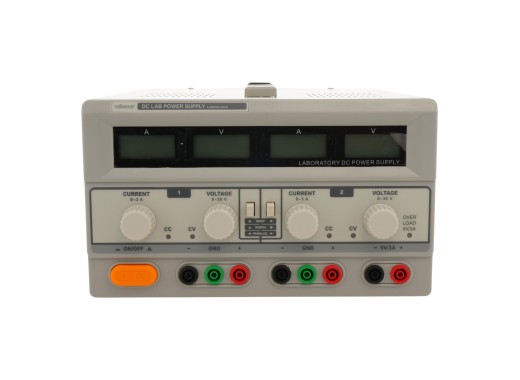

2nd Chance LABPS23023 power supply
Details
This is a second-chance product. While the unit remains functional, please note that one of the digit "bars" in the voltage display is broken (see last picture), which can sometimes make the reading harder to distinguish. The device shows light traces of use, but is otherwise in good working order.
This stabilised double digital power supply is equipped with illuminated LCD screens to display the voltage and current. The supply has two 0-30V/3A outputs and a fixed 5V/3A output, which can be switched independently by using the two rotary knobs. The noise of this supply is 1 mVpp, which makes it very accurate.
For both connections, both the current and voltage can be adjusted steplessly. The supply is equipped with a fan and it is also possible to make symmetrical voltages. In parallel, this supply can deliver 6A, while in series, it can deliver 60V.
Specifications
| Voltage (max) | 2x 0-30V DC (can be connected in series) + 1x 5V DC |
| Current (max) | 2x 0-3A (can be connected in parallel) + 1x 3A |
| Ripple voltage | < 1mV RMS |
| Eleshop noise production rating | ★ ★ |
| Dimensions | 265 x 360 x 165 mm |
| Net weight | 7.1kg |
Accessories
- Power cable
For more information, you can consult the manual or the safety sheet.
