Details

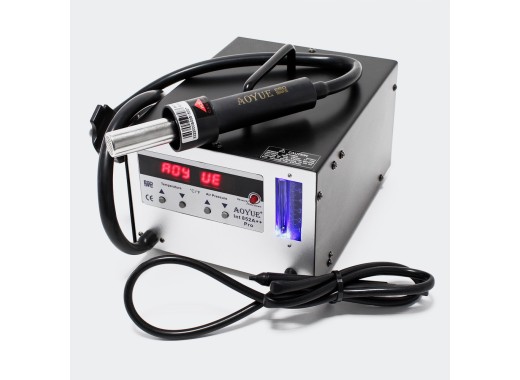

The Aoyue 852++ is a micro-controlled hot-air soldering station. This station has a high power of 500W, which ensures a fast heating response. By using the buttons on the soldering station it is easy to set the desired temperature and air pressure. Furthermore, the Aoyue 852++ is ESD safe and easy to transport.

One of the key features of this product is the built-in sleep mode with timer functionality. This allows the device to cool down temporarily after a pre-defined time set by the user - with 5 minutes as default. The sleep mode function will be activated if the hot air gun is docked on the handle and remained idle for 5 minutes. Once the hot air gun is released from the handle during sleep, the unit will automatically switch back to previous working temperature and airflow level conditions without the need for manual intervention. This built-in sleep mode with timer functionality extends the life of the soldering station and reduces energy consumption.

The Aoyue 852++ hot-air soldering station also contains a built-in thermal protector. When the temperature gets too high the soldering station will be shut-off automatically and when the temperature is dropped enough the soldering station will be turned on automatically.

Many different nozzles are available for this hot-air soldering station. Among other things, nozzles can be supplied for SOP, PLCC, and QFP in various sizes. All options can be found on this page. The soldering station comes standard with 4 nozzles.

2nd chance

This Aoyue 852A++ is new in the box, never used, undamaged and tested for function. Only the original box is missing. Complete with all accessories.

Specifications

Power	500 W
Temperature range	100 °C - 480 °C
Airflow (max)	23 l/min.
Heating element	Metal heating core
Resistance to earth	< 2 Ω
ESD-safe	yes
Length air hose	ca. 90 cm
Weight	3.8 kg
Dimensions	187 x 137 x 240 mm
