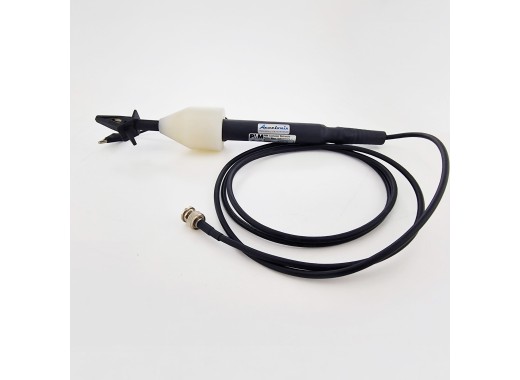

2nd Chance PMM SHC-2 probe
Details
The PMM SHC-2 high-impedance voltage probe offers a safe and reliable solution for accurate conducted emission measurements, even at high current levels where LISNs fall short. Thanks to its built-in blocking capacitor and an internal resistance greater than 1500 ohms, this probe ensures consistent measurement results without the risk of dangerous voltages. The probe complies with CISPR 16-1-2 and is compatible with various EMI receivers, allowing easy integration into any test setup.
Specifications
| Frequency range | 9 kHz - 30 MHz |
| Insertion loss | 35 dB |
| Input capacitance | < 10 pF |
| Input impedance | > 1500 Ω |
| Max. input operating voltage | 300 V AC |
| Connectivity | BNC male |
| Weight | 357 g |
Accessories
The SHC-2 is supplied with:
- Calibration certificate
