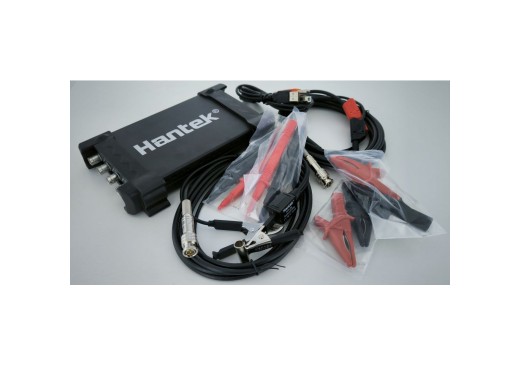

2e kans Hantek 6074BE IV automotive kit
Details
The Hantek 6074BE IV kit is an elaborate measurement kit that includes a 4-channel oscilloscope and several measurement accessories for automotive applications. This kit is equipped with over 80 types of automotive measurement functions and more than 20 kinds of automatic measurement functions. Moreover, the 6074BE kit is ideal for performing measurements on the road, since it is small and lightweight and can be connected to a laptop. It's possible to connect multiple oscilloscopes to a single computer.
Model overview
| Model | 6074BE | 6104BE |
|---|---|---|
| Bandwidth | 70 MHz | 100 MHz |
| Price |
Specifications
| Channels | 4 |
| Memory depth | 64K (divided by number of active channels) |
| Sample rate | 1 GSa/s (divided by number of active channels) |
| Vertical resolution | 8 bits |
| Vertical scale | 2 mV/div - 10 V/div |
| Horizontal scale | 2 ns/div - 1000 s/div |
| Interfaces | USB 2.0 plug and play |
| Display | External display required |
| Dimensions | 175 x 105 x 25 mm |
| Weight | 0.9 kg |
Accessories
The Hantek 6074BE IV kit comes by default with:
- Aluminium case
- USB cable
- 4x Large dolphin/gator clips
- 4x multimeter probes
- 4x 20:1 attenuator
- 4x Auto high-pressure ignition probes
- 4x Auto test cables
- 1x Break out leads
- 1x Acupuncture probe set
- 4x Coil-on-plug extension cord (with earth cord)
- 2x Dolphin/Gator clip cable
- 1x 65A current clamp
- 1x 650A current clamp
