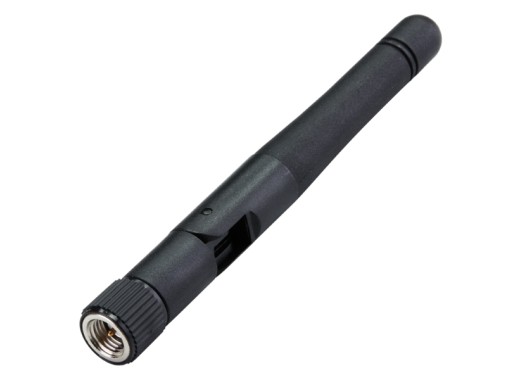

2.4 GHz SMA antenna
Details
This SMA Male antenna operates in the 2.4GHz band and is omni-directional. We also sell similar antennas that operate in the common ISM bands.
Antenna overview
| Model | 433 MHz | 866 MHz | 2.4 GHz | 0.6 - 6 GHz |
|---|---|---|---|---|
| Peak gain | 0 dBi | -1.7 dBi | 2.3 dBi | -1.9 - 4.6 dBi |
| Length | 44.8 mm | 168.0 mm | 84.0 mm | 180mm |
| Price |
Specifications
| Power handling | 1 W |
| Impedance | 50 Ω |
| Connector | SMA Male |
Downloads
| 2.4GHz SMA Antenna User Manual |  (916.01 KB) | Download |
