Macro lenses are very useful lenses for inspecting objects up close. You can buy a macro lens for a single-lens reflex camera, but you can also do this for an infrared camera. These lenses for infrared cameras are very helpful, for instance, for inspecting components on printed circuit boards up close. In the case of printed circuit boards, a macro lens is very useful for detecting a faulty component because it is probably hotter when it draws too much current or colder than expected when it is completely disconnected. You can also use the macro lens while you are designing circuits to see if some components are becoming hotter than expected.

Products

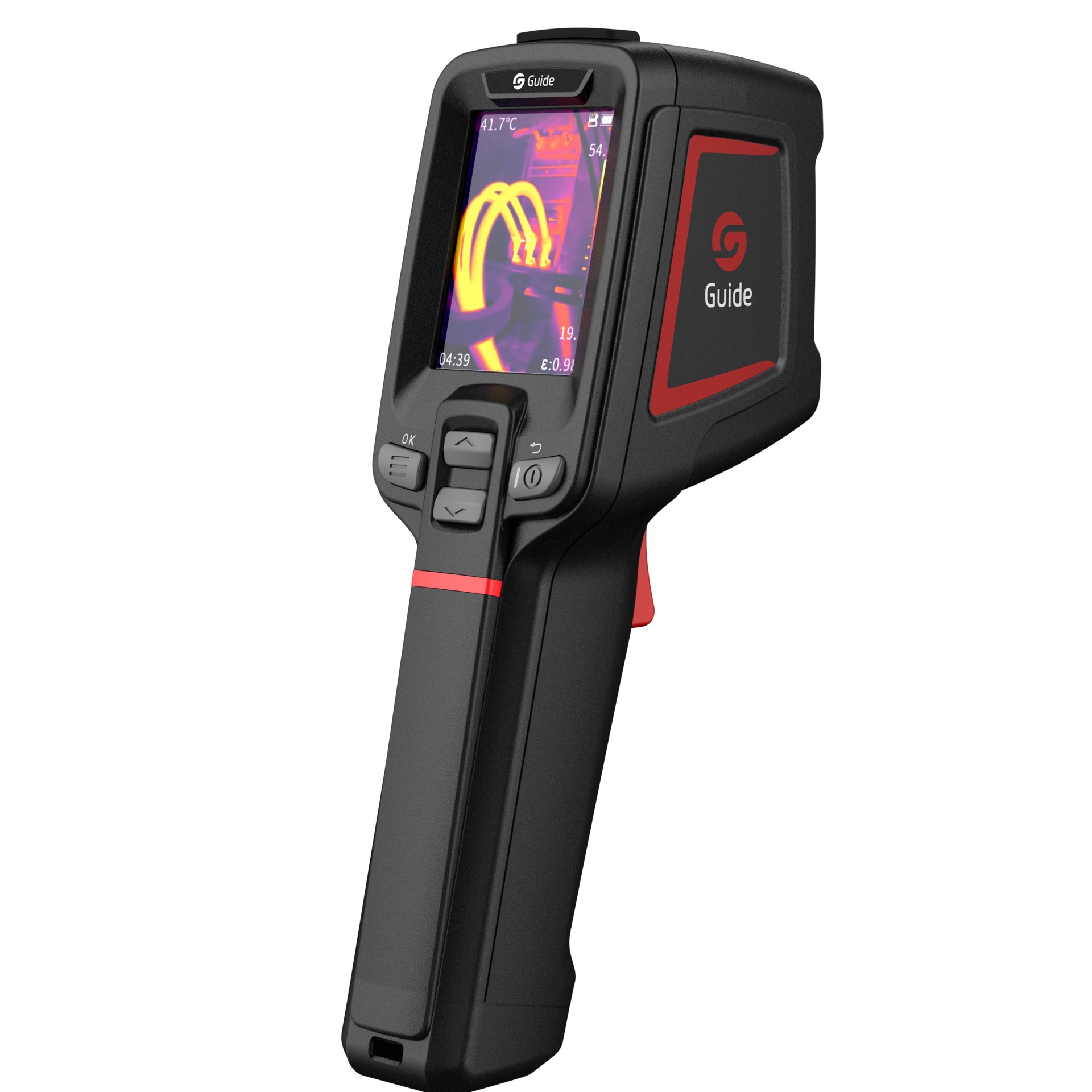

Guide IR PC210 thermal imaging camera 256x192

The performance and quality of this thermal camera can easily be compared with well-known brands like Flir. Especially the excellent price/quality ratio stands out. Using both the superb IR resolution of 256x192 combined with the information obtained from its visible light camera, this PC210 delivers crisp clear thermal images. Besides the excellent sensor this camera offers other important features: for example 1 second boot time, auto hot & cold spot tracking, alarm function, flashlight, and a laser.

This camera can be considered to be very sturdy as it has an IP54 rating and been drop-tested up to 2m. It can be mounted on a tripod, because it features a 1/4 inch mount connector on the handle bottom. Using PotPlayer it is possible to view live IR video over USB-C.


UNI-T UTi260B thermal imaging camera

The UNI-T UTi260B is a thermal imaging camera with a resolution of 256 x 192 pixels and a temperature range of -15 to 550 °C. It also features a 2.8 inch TFT LCD display with a resolution of 320 x 240 pixels. This affordable and very popular thermal imaging camera from UNI-T is a true hit with international bloggers. Especially because of the high resolution (256x192) and big temperature range.


Macro lens for the GuideIR PC210 thermal imaging camera

This is a macro lens which fits the GuideIR PC210 thermal imaging camera. The adapter makes it possible to focus on electronics close by.

The adapter snaps easily around the thermal camera. It can be removed easily as well, when you want to use the camera without the macro lens. The adapter is 3d-printed in sturdy PETG plastic.

The macro lens also fits the GuideIR T120 but due to the lower resolution we recommend usage with the PC210


Macro lens for the UNI-T UTi260B thermal imaging camera

This is a macro lens which fits the UNI-T UTi260B, UTi220B, UTi165A and the UTi85A thermal imaging camera's. The adapter makes it possible to inspect electronics with the UNI-T thermal camera. Making it easy to find components which are overheating.

The adapter snaps easily around the thermal camera. It can be removed easily as well, when you want to use the camera without the macro lens.

The adapter is 3d-printed in sturdy PETG plastic.



Video

Bas shows in this video the new macro lenses we sell for the UNI-T UTi260B and the Guide PC210. First, the usefulness of a macro lens is explained and shown. Afterward, the macro lenses are shown and there is shown how to put the lenses on the cameras. Furthermore, the focal distance of the macro lenses is measured and shown. And finally, it is shown where you can find the macro lenses on our website.
